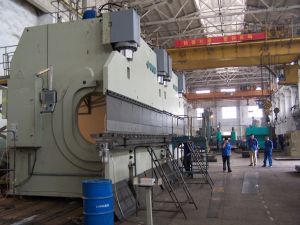

2-PPEB Series Press Brake
2-PPEB Series Press Brakes

2-PPEB Series Press Brakes

Introduction
Press brakes, or brake press, are a kind of machine for bending sheet. 2-PPEB series press brakes are composed of two PPEB series CNC hydraulic press brakes. They use the advanced hydraulics and electronics technology and multi-axis configurations are available to satisfy a broad range of bending needs. The tonnage of the machine for bending sheet is 160 tons to 8000 tons and width of plates to be folded could be 4 meters to 24 meters.

Characteristics
1. 2-PPEB series press brakes, as the name indicates, consist of two PPEB series CNC hydraulic press brakes.
2. This type of bending machine adopts the latest technology from Belgium LVD company.
3. With precise control from reliable CNC control system and electro-hydraulic servo system, our machine for bending sheet can produce products with high quality.
4. Total numerical control contributes to easy operation, simple maintenance and convenient adjustment.
5. These CNC hydraulic press brakes also possess concise structure and beautiful shape.
6. Our bending machines are characterized by high quality, precision, stability as well as reliability

HUBEI TRI-RING METAL-FORMING EQUIPMENT provides all kinds of CNC Hydraulic Press Brake in China. 2-PPEB series CNC Hydraulic Press Brake is applied with the latest technology from Belgium LVD Company. YSD occupies more than 80% market shares in the field of bending machine in China. For more information, please contact us.

Parameter table for steel bar linkage bending machine

Parameter name unit 320/60 400/60 500/60 640/60 800/60 800/70 800/80 1200/70 1200/75 1200/80 1600/80 2000/80 2400/85
Pressing force KN 2×3200 2×4000 2×5000 2×6400 2×8000 2×8000 2×8000 2×12000 2×12000 2×12000 2×16000 2×20000 2×24000
Bending mm 2×6000 2×6000 2×6000 2×6000 2×6000 2×7000 2×8000 2×7000 2×7500 2×8000 2×8000 2×8000 2×8500
Stroke of RAM mm 300 300 300 320 400 400 400 400 400 400 400 400 400
Distance between uprights mm 950 950 1100 1200 1200 1200 1200 1250 1250 1250 1250 1250 1250
Throat depth mm 710 710 900 1100 1100 1100 1100 1600 1600 1600 1600 1600 1600
Approaching speed mm/s 100 100 75 80 100 100 100 65 65 65 60 60 60
Working speed mm/s 10 8 8 8 8 8 8 7 7 7 7 6 5
Returning speed mm/s 100 80 75 80 70 70 70 65 65 65 70 60 50
Two oil cylinder center distance mm 5130 5140 5150 4000 4000 5030 5030 4500 5000 5030 5210 5210 6000
Lower die biggest opening mm V形视 240 240 280 280 280 280 320 320 320 320 320 320
of working table mm 320 500 500 500 500 500 500 600 600 600 600 600 600
Motor power kw 2×37 2×37 2×45 2×55 4×37 4×37 4×37 4×45 4×45 4×45 4×55 4×55 4×75
Bending maximum thickness(mm)×Board wide(dm) Q235-A mm×dm       25×100 26×102 25×123 23×146 30×126 30×132 29×148 32×149 35×150 35×170
mm×dm 12×120 17×120 19×120 20×120 23×120 22×140 20×160 28×140 27×150 26×160 29×160 32×160 35×170
Relative distance from edge of bending single-seam pipe with turning around octagon mm 360 360 455 560 560 560 560 815 815 815 815 815 815
dodecagon mm 355 355 450 550 550 550 550 805 805 805 805 805 805
Relative distance from edge of bending single-seam pipe without turning around octagon mm 990 990 1260 1540 1540 1540 1540 2250 2250 2250 2250 2250 2250
dodecagon mm 1105 1105 1405 1720 1720 1720 1720 2510 2510 2510 2510 2510 2510
