Amorphous Strip Automatic Shearing Line
HGN(K) Series Hydraulic Guillotine Shears

Amorphous Strip Automatic Shearing Line

Amorphous strip automatic shearing line is a fully automatic production line to decoil, scale, shear and stack the amorphous strips according to the features of strips.

Numerical Control (NC) System: uses Germany LENZE P500 panel controller and self-developed control software. Users are provided with machine operation parameter and process parameter to facilitate the use and maintenance of machine. EthereCAT board and built-in Ethernet switch help network connection and facilitate the construction of digital workshop.

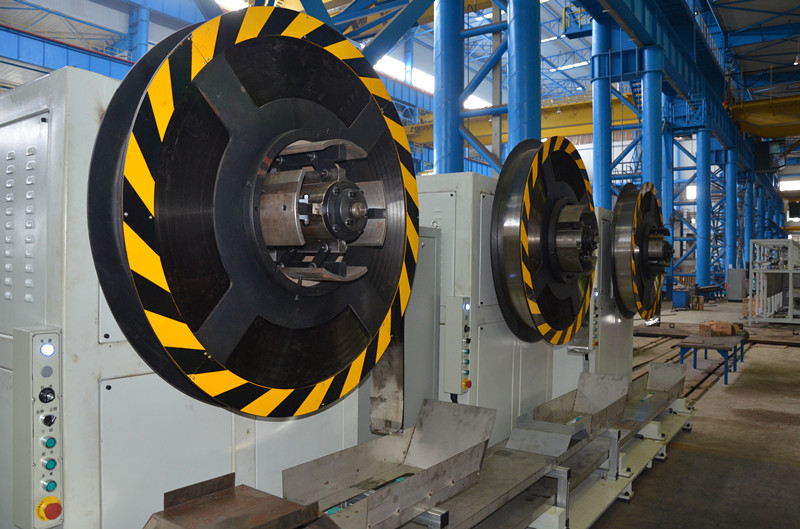

Automatic Tensioning Unit: the feeding unit of automatic cutting line is designed with automatic tensioning function, which helps the automatic tensioning and loosening of coils and provides convenience for changing coils.

Shearing Unit: driven by oil cylinder, this unit enjoys simple structure, stable performance, low failure rate and convenient maintenance.

Length Control Unit and Feeding Unit: the length control unit is composed of LENZE servo system, gear speed reducer, FESTO electric cylinder and pneumatic clamp to realize the precise control over shearing length and stacking.

Technical Parameter

Machine Model CJZ15/8000 CJZ15/6000 CJZ15/3000 CJZ15/2000
Cutting Width (mm) 142-213 142-260 142-213 142-213
Cutting Length (mm) 500-8000 500-6000 300-3000 300-2000
Diameter of Supporting Arm (mm) 360-430 360-430 360-430 360-430
O.D. of Material (mm) ≤1200 ≤1200 ≤1200 ≤1200
Stacking Height (mm) ≤200 ≤200 ≤160 ≤160
